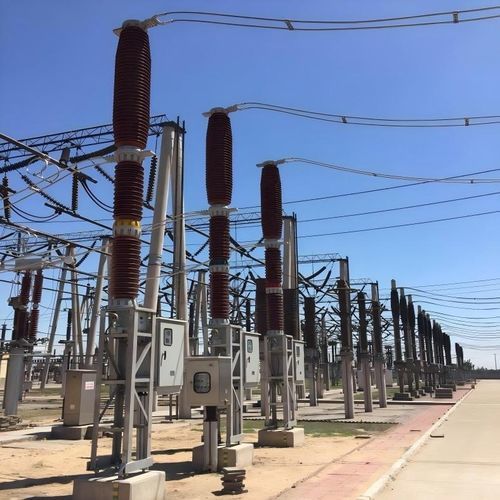

SF6 gas-insulated circuit breaker LW35S-252
live-tank3-poledistribution

SF6 gas-insulated circuit breaker
SF6 gas-insulated circuit breaker
SF6 gas-insulated circuit breaker
Add to favorites
Compare this product


Characteristics

Type
SF6 gas-insulated, live-tank
Electrical characteristics
3-pole
Applications
distribution
Primary current

3,150 A, 4,000 A

VAC

252 kV

Description

  LW35S-252 Circuit Breaker adopts self-energizing interrupter and CYT hydraulic operating mechanism, which have the advantages of simple structure, stable and reliable performance, etc., to realize three-pole-gang operation. It fills the domestic gap of professional market and meets urgent requirements of power system.   1 The interrupter adopts advanced self-energizing arc-extinguished principle, can make use of the energy generated from arc itself to break fault current, so as to realize a small operating energy with high mechanical reliability.   2 The circuit breaker is equipped with CYT hydraulic operating mechanism, dynamic sealing system adopts advanced Glyd ring, Step seal, etc.,which reduces the leakage and starting friction.   3 The mechanism uses imported control valve, with the advantages of fast operating speed, short opening time, reliable anti-slow-opening function in case of pressure loss.
