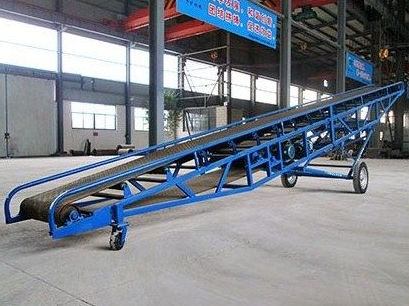

Chevron conveyor belt DY

industrial

Portable Belt Conveyor Model: DY Belt Width : 500/650/800/1000mm Conveying Distance: 3-30m Belt Speed: 0.80/1.00/1.25/1.60/2.00/2.50m/s Lifting Height : 0.8~12.5m Capacity: 25~550m³ Introduction Portable belt conveyors were built to withstand the rugged conditions of any job site. It can be used for transport bulk material or bags. It can be divided into rise-and-fall and non rise-and-fall type, according to different transport requirements, the transport system can be single belt conveyor or consist of several conveyors or be combined with other conveying equipment, in addition, it can be installed horizontally or aslant to meet the needs of different production lines. Advantages and Features 1.Light weight, one operator can move it easily. 2.Lifting height can be adjust according to your need. 3.Belt conveyor system provides gentle handling and higher capacity than the same size screw conveyor. 4.With wheels and can be moved to anywhere to save equipment number. 5.Easier for bags or bulk material stacking in warehouse to save your labor cost. 6.Adopt chevron pattern conveyor belt to increase the maximum conveyor angle. 7.The conveyor length can be customized according to your requirement.
