Cement elevator bucket NE

steel

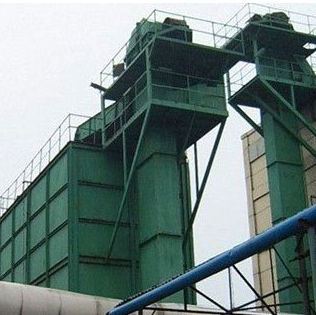

Cement bucket elevator Model : NE Bucket Width: 250/300/400/600/700/800mm Bucket Running Speed: 0.5m/s Traction Component: High strength alloy steel plate chain Capacity: 15-800m³/h Max. Lifting height: 40m Introduction NE type bucket elevator’s traction configuration is plate chain , which is used for vertically transporting powder , granular and block material , and also high grinding material , such as coal powder , slag , limestone , cement raw material , cement clinker , cement , coal , dry clay etc , material temperature is less than 250℃. Max. lifting height can be 40m .It is special for cement,so we also call it cement bucket elevator. Advantages and Features 1. Cement bucket elevator machine adopts plate chain, gravity discharge material. 2.High strength plate chain of the superior alloy steel is wear-resisting and steady. 3. Adopt several kinds of driving groups to drive, there are maintained frame and guardrail on driven platform 4. With guard rails to prevent chain deviation while running. 5. With holdback to prevent material feed back. 6. Bottom part has the self-tension device. 7. Low driving power, inflow feeding, induction unloading, high-volume hopper intensive arrangement. 8. Wide lifting range, few requirements of material type and property. 9. Good running reliability. 10.Long life span.
