Scraper conveyor MC

chaininclinedtrough

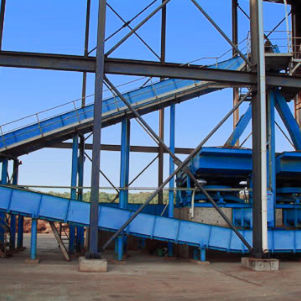

Incline scraper chain conveyor Model: MC Trough Width: 160/200/250/320/400mm Transport Speed: 0.16/0.20/0.25/0.32m/s Capacity: 11~110m³/h Conveying Distance: 5~35m Chain Structure: DO/GO/BO Introduction Incline scraper chain conveyor is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains.By means of moving chains, it can continuously transport the materials in closed rectangular casing vertically or at a large incline.The MC buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc. Advantages and Features 1.Totally enclosed structure without pollution to the environment 2.light weight,small volume,space saving 3.Convenient installation and maintenance 4.Vertical or large inclined transportation, angles range from 30° to 90° 5.Multiple material feeding point and discharging point 6.Conveying distance is up to 40m 7.Material temperature lower than 120℃ 8.Gear motor brand can be domestic or imported: Tailong, SEW, Siemens etc.
