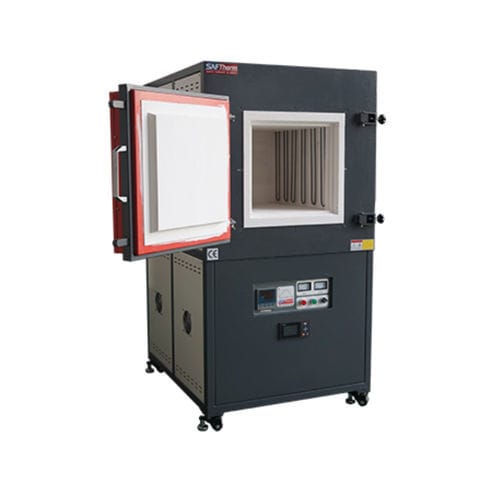

Chamber furnace STD-96-17

heat treatmentannealingsintering

1700℃ manual door industrial furnace is used for quenching, tempering, normalizing, annealing and other heat treatment processes of metal materials, and can also be used for sintering of non-metallic ceramic materials. It is very suitable for small batch production and pilot test in laboratories and factories.. Features Furnace Shell The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion. Strong metal frame shell structure, low furnace surface temperature. The side-opening furnace door structure, the left hinge is fixed, and the operation is convenient. Refractory Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption Heating System High-quality MoSi2 heating element, safely and firmly installed on both sides of the furnace, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace Temperature Control Panel PID and SCR control mode, precise temperature control International standard B-type platinum-rhodium thermocouple, temperature range 50-1800 ℃, long service life The furnace door is equipped with a door-opening power-off safety protection switch Program Controller Advanced controllers that meet complex process requirements Simple operation, flexible programming Programmable 30 segments for a single curve Over temperature and fault alarm, automatic safety protection
