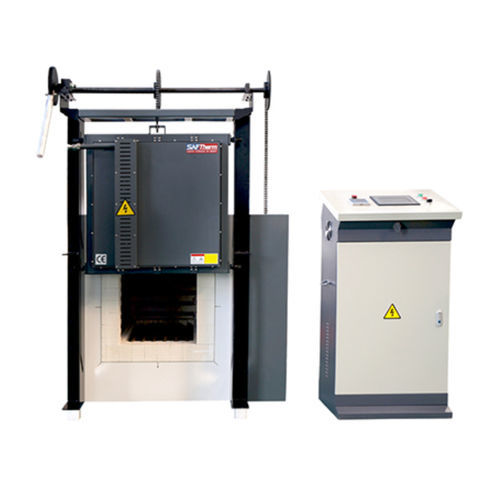

Chamber furnace STD-150-12

heat treatmentannealingsintering

The 1200C automatic door industry furnace is used for heat treatment processes such as quenching, tempering, normalizing, and annealing of metal materials, and can also be used for sintering of non-metallic ceramic materials. It is very suitable for small batch production and testing in laboratories and factories. Features Furnace Shell The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti-corrosion. Strong metal frame shell structure, low furnace surface temperature. Electro-hydraulic lifting furnace door, with limit switch. The automatic opening switch of the furnace door can be selected from button type and foot type. Refractory Multi-layer thermal insulation design, double-layer light refractory brick lining with strong structure, high-strength stacking and splicing, no asbestos, low heat loss and low energy consumption Heating System High-quality metal or ceramic heating element, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life Heating on three sides (left and right sides and furnace bottom), so as to achieve good uniformity in the furnace The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.
