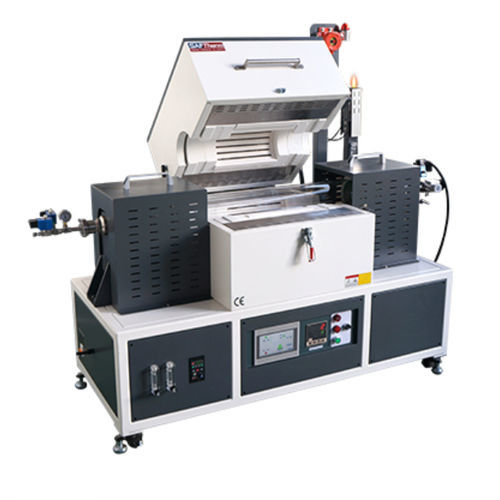

Tubular furnace STGX-150-12

spiralthermalgas

hydrogen tube furnace The processing tube is made of high-quality Ni-based superalloy which never cracks and breaks at flowing Hydrogen gas. One 3M hydrogen detector is included which will shut down the Hydrogen gas generator and gas inlet valve immediately once detecting hydrogen gas leaking. Features Furnace shell The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low Horizontal use mode, upper opening structure, easy to operate Refractory material Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption Heating system 1.High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the inner surface of the furnace, thermal radiation heating in the furnace cavity, which is energy-saving and efficient, long service life. 2.Ring heating by resistance wire to achieve good uniformity in the furnace. Temperature Control Panel 1.Advanced controllers that meet complex process requirements. 2.Programmable 30 program segments to realize automatic curve temperature control. 3.Over temperature and fault alarm, automatic safety protection.
