Rotary furnace STGXQ-40-12
spiralthermalautomatic

Rotary furnace - STGXQ-40-12 - Henan Sante Furnace Technology Co.,Ltd. - spiral / thermal / automatic
Rotary furnace - STGXQ-40-12 - Henan Sante Furnace Technology Co.,Ltd. - spiral / thermal / automatic
Rotary furnace - STGXQ-40-12 - Henan Sante Furnace Technology Co.,Ltd. - spiral / thermal / automatic - image - 2
Rotary furnace - STGXQ-40-12 - Henan Sante Furnace Technology Co.,Ltd. - spiral / thermal / automatic - image - 3
Rotary furnace - STGXQ-40-12 - Henan Sante Furnace Technology Co.,Ltd. - spiral / thermal / automatic - image - 4
Rotary furnace - STGXQ-40-12 - Henan Sante Furnace Technology Co.,Ltd. - spiral / thermal / automatic - image - 5
Add to favorites
Compare this product


Characteristics

Configuration
spiral, rotary
Function
thermal
Other characteristics
automatic, horizontal, tilting
Maximum temperature

1,200 °C
(2,192 °F)

Description

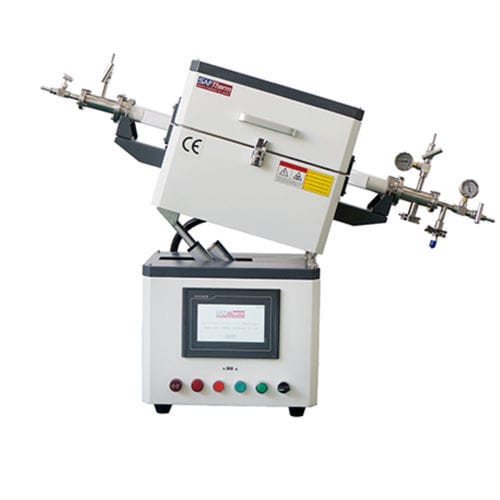

The1200C rotary tube furnace is composed of a heating system, an automatic rotary mechanism kit and a furnace body tilting mechanism. The furnace tube can be rotated 360°, the speed can be adjusted, and the temperature field is uniform. Furnace body can be tilted 15°, making it easy to enter and exit materials. Features Furnace shell The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low Horizontal use mode, upper opening structure, easy to operate Refractory material Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption Heating system 1.High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the inner surface of the furnace, thermal radiation heating in the furnace cavity, which is energy-saving and efficient, long service life. 2.Ring heating by resistance wire to achieve good uniformity in the furnace. Temperature Control Panel 1.Advanced controllers that meet complex process requirements. 2.Programmable 30 program segments to realize automatic curve temperature control. 3.Over temperature and fault alarm, automatic safety protection.
