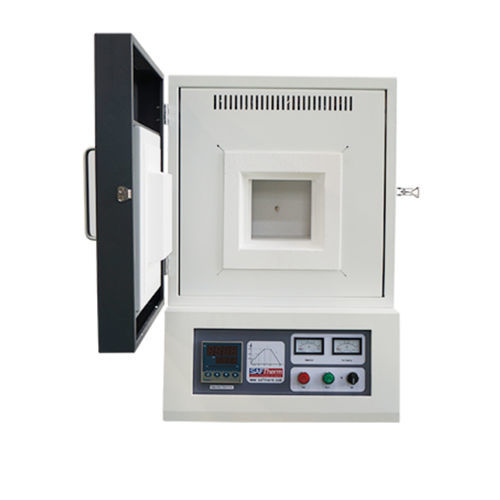

Muffle furnace STM-3-17

heat treatmentsinteringhigh-temperature

1700℃ muffle furnace (box-type resistance furnace) is used in sintering and sintering of ceramic materials, nanomaterials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries High temperature heat treatment. Features Furnace Shell The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion. Strong double-layer metal frame shell structure, low furnace surface temperature. Side-opening furnace door structure, the furnace door opens to the right, easy to operate. Refractory Material Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption. Heating System High-quality MoSi2 heating element, safely and firmly installed on both sides of the furnace, free heat radiation heating in the furnace cavity, energy saving and high efficiency, long service life Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace High-temperature furnaces with a maximum temperature of 1750°C and 1800°C can be customized, which are applied to the sintering of ceramic materials
