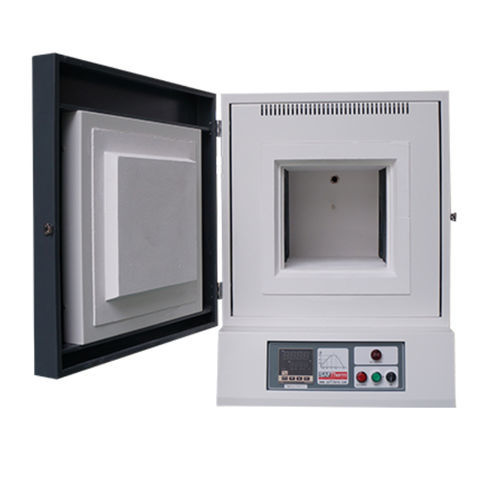

1400℃ muffle furnace (box-type resistance furnace) is used in the sintering and sintering of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment.
Features
Furnace Shell
The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
Strong double-layer metal frame shell structure, low furnace surface temperature.
Side-opening furnace door structure, the furnace door opens to the right, easy to operate.
Refractory Material
Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption.
Heating System
The high-quality SIC heating element is safely and firmly installed on both sides of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life
Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace
The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing
Temperature Control Panel
PID and SSR control mode, precise temperature control
Internationally standardized S-type platinum-rhodium thermocouple, with a temperature measurement range of 0-1600℃ and a long service life
The furnace door is equipped with a door-opening power-off safety protection switch
