Water filter EY series
Y-strainerpressurecoarse pre-filtration

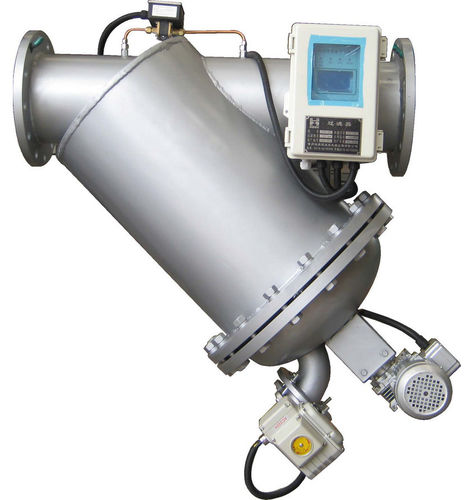

Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration
Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration
Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration - image - 2
Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration - image - 3
Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration - image - 4
Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration - image - 5
Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration - image - 6
Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration - image - 7
Water filter - EY series - Henan Sinofiltec Technology Co.,Ltd - Y-strainer / pressure / coarse pre-filtration - image - 8
Add to favorites
Compare this product


Characteristics

Designed for
water
Filtration element
Y-strainer
Filtration method
pressure
Applications
coarse pre-filtration, industrial, for steel plant applications, for automatic machines, process, for the food industry, for cooling towers, for air conditioning, for cooling systems, for chemical applications, for pipe, for boiler, for water treatment, for refrigeration, separation, for purifying, for pipelines, irrigation, low-pressure, automotive
Material
stainless steel
Mounting
flange
Cleaning
self-cleaning
Fluid specification
process water, rainwater, for seawater, for rinse water, for raw water
Other characteristics
automatic, metal mesh, sintered, wedge wire
Operating pressure

Min.: 0.15 Pa
(0 psi)

Max.: 25 Pa
(0.004 psi)

Filtration size

Min.: 25 µm

Max.: 2,000 µm

Flow

Min.: 25 m³/h
(882.867 ft³/h)

Max.: 1,200 m³/h
(42,377.6 ft³/h)

Fluid temperature

Min.: 10 °C
(50 °F)

Max.: 85 °C
(185 °F)

Description

The EY series filter unit is equipped with a straight flange on the pipeline for easy installation and integration with any straight line. Raw water enters the interior of the screen from the inlet of the filter and then flows through the screen to the outlet of the filter. The EY Series filter is a self-cleaning filter for any environment. During the self-cleaning process of the entire filter, the system continuously flows, and the differential pressure switch also continuously monitors the pressure difference inside and outside the filter. These automatic water filters provide solutions for a variety of industrial, irrigation and municipal applications. - Degree of Filtration Options (Micron): 5, 10, 25, 50, 75, 100, 120, 150, 200, 300, 500, 1000, 2000. - Material: Standard 316L stainless. Screen is fused to stainless steel perforated plate for maximum durability. - Particle Removal: 98-100% particle removal efficiency above the degree of filtration - Flow Capacity: Maximize flow per square inch of screen area with sintered mesh
