Air-cushion conveyor TDSQ series
beltfor the food industryfor the mining industry

air-cushion conveyor
air-cushion conveyor
air-cushion conveyor
air-cushion conveyor
air-cushion conveyor
air-cushion conveyor
air-cushion conveyor
Add to favorites
Compare this product


Characteristics

Technology
belt
Sector
for the food industry, for the mining industry
Transported product
for bulk materials
Other characteristics
enclosed, high-capacity, lightweight, air-cushion
Speed

Min.: 1.6 m/s
(5.25 ft/s)

Max.: 3.15 m/s
(10.33 ft/s)

Bulk throughput

Min.: 90 t/h
(55.116 lb/s)

Max.: 2,200 t/h
(1,347.269 lb/s)

Effective width

500 mm, 650 mm, 800 mm, 1,400 mm, 1,600 mm
(20 in, 26 in, 31 in, 55 in, 63 in)

Description

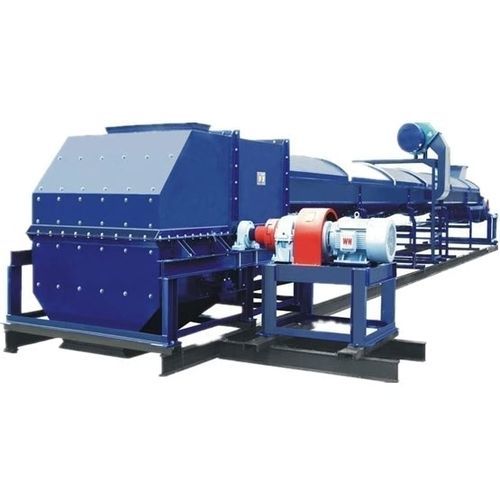

Air-cushion Belt Conveyor For its low self structure weight and big conveying capacity, and advantage of low down silo roof load bearing, air-cushion belt conveyor is widely used for big capacity conveying for grain in industries of food workshop,grain terminals, sea ports depot, mining, coal, chemical industry, steel etc. • - The air-cushion belt conveyor use thin film replacing the roller, which greatly improve the operation situation of the belt and reduce the frictional resistance. • - You are optional for single chamber or double chamber according to the demand. • - Fully-enclosed structure, small dust, low noise, environment-friendly. • - The tail adopts the sealing type self-cleaning feed recycle device, fundamentally solve the tail material-accumulation problem. • - Equip with inspection door, observation window, dust-collection exhaust inlet, keep watching on the equipment running status. • - Optional for speed detection, misalignment, anti-blockage, scram detection device etc., assure the machine safety and efficient.
