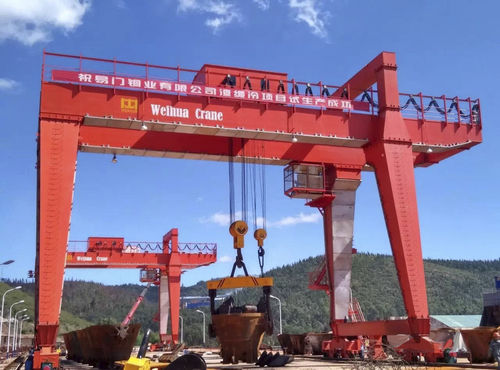

Rail-mounted gantry crane MGY74/32

for metallurgical applications

Just a few days before, Weihua Group has invented the first MGY74/32 model metallurgy gantry crane, a breakthrough in domestic machine and equipment lifting industry. It has been successfully handled into the hands of Yimen Copper Co. Ltd and applied into the heating and cooling field to lift and transfer metal copper slag. In the field of copper wielding, this equipment is a new challenge and has no technical standards. Based on other metallurgy cranes technical standards, the working condition, the travelling mechanism protection, Weihua Group has succeed in manufacturing this equipment. This equipment has also passed the test of China’s Test Center and served as a example for other manufacturers in China. MGY metallurgical Gantry crane is mainly used for lifting slag ladle containing metal slag in non-ferrous or Ferrous smelting projects, and the working environment is outdoor This product mainly adopts a gantry structure with a single cantilever on one side. To improve the leg passing capacity of the slag ladle, the crane legs adopt a 'U' structure. There is a track arranged within the span of the crane for the train to operate. The crane can unload slag bags filled with molten slag or load cooled and cleaned slag bags from trains parked on the track
