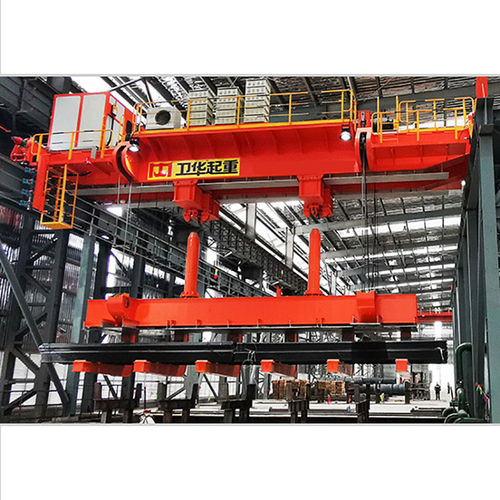

Double-girder overhead crane

Weihua intelligent quenching crane is mainly used for hoisting high-temperature profiles or bars and performing the quenching process. After the high-temperature bars come out of the furnace, they are transported to the designated location by a flat car, and the heat treatment crane is in place to hoist the high-temperature bars to the quenching pool and then descend for heat treatment. Finally, it is lifted and placed in the designated position and waits for the instruction before proceeding to the next working cycle. 1. Equipped with a special spreader for C-hooks for quenching, multiple C-hooks are assembled with detachable pins, and the connection position is set on the side, which is convenient for later maintenance and effectively improves the hosting space. 2. The control system is equipped with wireless remote control and ground central control, which is realized by wireless communication equipment of big brands The remote control station interacts with the information on the vehicle and has a remote control and fully automatic control modes. 3. The positioning system uses an absolute encoder and a position detection switch, which can be automatically corrected to avoid cumulative errors Realize high-precision positioning. 4. The control system receives the instructions sent by the upper system to realize fully automatic operation and has the functions of stable posture, gentle lifting, quick quenching, and anti-collision.
