Sedimentation tank GLDS

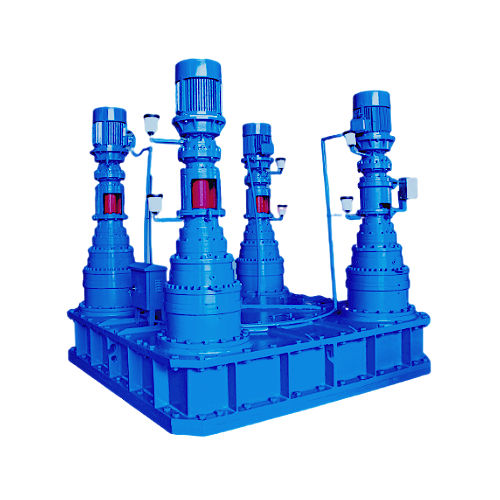

The equipment is mainly composed of tank body and truss, transmission device, rake, flocculant addition system and other parts. (1) Trough body and truss The tank body and feeding system are mainly designed according to the process parameter requirements of the project and the site area, so that it can reach the daily production capacity index, and various nozzles are reserved according to the interface requirements to ensure the smooth and reliable connection of the pipeline. The truss is a kind of steel structure that bears the load on the upper part of the tank. It is mainly designed according to the weight of the equipment and the diameter of the tank. Its function is to install the driving device and check and maintain the operation of the equipment. (2) Transmission - CHX type The transmission device is designed according to the use requirements of high torque and low speed. According to the material conditions and process requirements, the maximum power is 45KW, and the minimum rotation speed is 0.05r/min. There is a safety protection device in the transmission device. When the equipment is overloaded At 45KW, the alarm system will give sound and light alarm; when the equipment continues to be overloaded to reach the predetermined load, the safety system will protect the equipment by alarming and stopping; the transmission device has multiple (1~6) drive units, and the gear bearings are accurate. The 4-point contact slewing bearing has the advantages of high output power, stable operation, low noise and high reliability.
