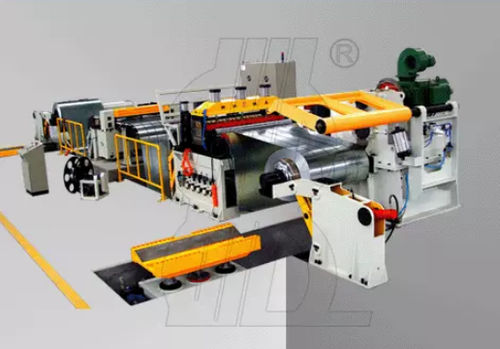

Metal strip slitting line HL-ZJ1250-90A

coil-fed

The equipment is used for slit the silicon steel, tinplate, steel, aluminum and etc. It used Siemens PLC, Yuken hydraulic components and NSK bearings in the key position. For accurately slitting silicon-steel, strip steel and aluminum strip. German Siemens PLC control, Japanese YUKEN brand hydraulic components, Carbide knives. 1）Slitting thickness：0.2-0.5mm 2）Max slitting width：1250mm 3）Max uncoiling weight：10T 4）Uncoiling O.D.：1400mm 5）Uncoiling I.D.：385-450mm / 480-520mm 6）Slitter mandrel diameter：120mm 7）Slitting quantity：15 strips 8）Slitting width：≥71mm 9）Recoiling weight：≤10T 10）Recoiling I.D.：508mm 11) Slitting parallel tolerance：0.05mm/m 12）Burr：≤0.02mm 13）Slitting width tolerance：0.05mm 14）Speed regulation method：DC, frequency control 15）Speed：10-90m/min 16）Total consumption：90Kw 17）Land occupation：16×7m 18）Other performance：All hydraulic driven, Proper circle recoiling, Pneumatic-expansion type strip tightener, With high-precision knife grinder, Side collector. 19）Unique design：Touch screen operation, Siemens PLC control, Whole ling automatic running, On-line adjust slitting width, Adjust knife without removing shaft, On-line grinding.
