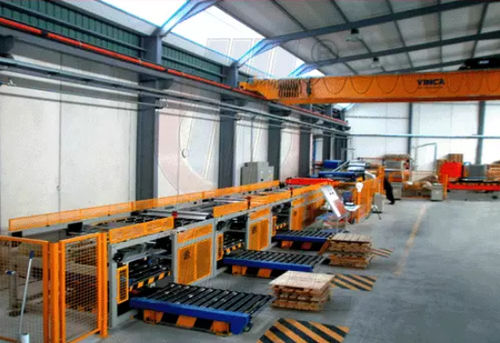

The maximum speed of the model is 70 SPM. The model is composed of uncoiler, flattener, cutter, stackers and etc. The line is using new model uncoiler, the complete line is on the ground without any foundation work. It is suitable for the customer who prefer high valuable.
For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost.
The electric control components use whole set of Mitsubishi control system.
Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material
Straight die / Scroll die
Feed-to-stop
1)Sheet width range:500-1200mm
2)Sheet thickness range:0.125-0.525mm
3)Sheet length range:500-1200mm
4)Max coil weight:13.5 T
5)Nominal coil I.D.:420mm
6)Mandrel expansion range:390-440mm
7)Coil O.D.:915-1800mm
9)Max cutting strokes:70 SPM
10) Max bundle weight:2100kg
11) Max bundle height:460mm (Including stander)
12)Length tolerance range:≤±0.15mm
13)Diagonal tolerance range:≤±0.18/1000mm
14)Power consumption:about 42kw
15)Air consumption:about 1m3/min
