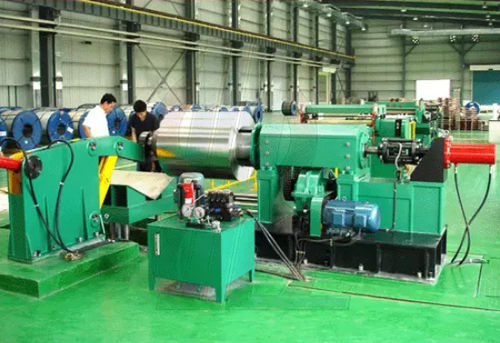

Die cutting line HL-1200BS3

for metalsheetCNC

The maximum speed of the model is 70 SPM. The model is composed of uncoiler, buffering pitloop, flattener, cutter, stackers and etc. It is suitable for the customer who prefer economical model. For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost. The electric control components use whole set of Mitsubishi control system. Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material Straight die / Scroll die Feed-to-stop 1）Sheet width range：500-1200mm 2）Sheet thickness range：0.125-0.525mm 3）Sheet length range：500-1200mm 4）Max coil weight：12T 5）Nominal coil I.D.：420mm 6）Mandrel expansion range：385-445mm 7）Coil O.D.：915-1700mm 9）Max cutting strokes：70 SPM 10) Max bundle weight：2100kg 11) Max bundle height：460mm (Including stander) 12）Length tolerance range：≤±0.15mm 13）Diagonal tolerance range：≤±0.18/1000mm 14）Power consumption：about 37kw 15）Air consumption：about 1m3/min
