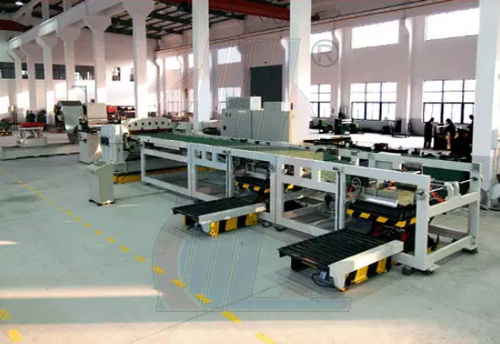

Die cutting line FS-1

for aluminumsheetcoil

For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost. The electric control components use whole set of Mitsubishi control system. Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material Straight die / Scroll die Rotary 1）Sheet width range：500-1200mm 2）Sheet thickness range：0.125-0.525mm 3）Sheet length range：500-1200mm 4）Max coil weight：13.5 T 5）Nominal coil I.D.：420mm 6）Mandrel expansion range：390-440mm 7）Coil O.D.：915-1800mm 9）Max cutting strokes：100 SPM 10) Max bundle weight：2100kg 11) Max bundle height：460mm (Including stander) 12）Length tolerance range：≤±0.15mm 13）Diagonal tolerance range：≤±0.15/1000mm 14）Power consumption：about 115kw 15）Air consumption：about 1m3/min
