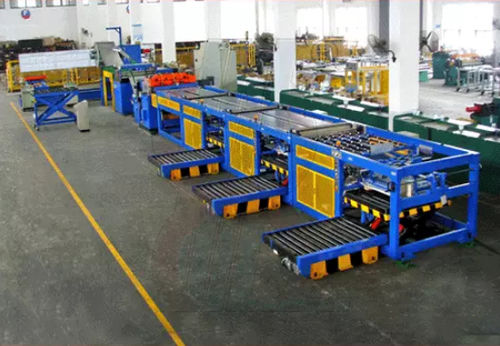

Die cutting line HL-1200BS6

for aluminumsheetcoil

The maximum speed of the model is 150 SPM. The model is composed of uncoiler, flattener, quick change cutter, stackers and etc. The line is using new model uncoiler, the complete line is on the ground without any foundation work. The line also equipped the quick change system. It makes the complicate and difficult change scroll die to be easier. You only need 10 minutes to change a scroll die. It is suitable for the customer who prefer high efficiency. For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost. The electric control components use whole set of Mitsubishi control system. Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material Straight die / Scroll die Feed-to-stop 1）Sheet width range：500-1200mm 2）Sheet thickness range：0.125-0.525mm 3）Sheet length range：500-1200mm 4）Max coil weight：13.5 T 5）Nominal coil I.D.：420mm 6）Mandrel expansion range：390-440mm 7）Coil O.D.：915-1800mm 9）Max cutting strokes：150 SPM 10) Max bundle weight：2100kg 11) Max bundle height：460mm (Including stander) 12）Length tolerance range：≤±0.15mm 13）Diagonal tolerance range：≤±0.18/1000mm 14）Power consumption：about 115kw 15）Air consumption：about 1m3/min
