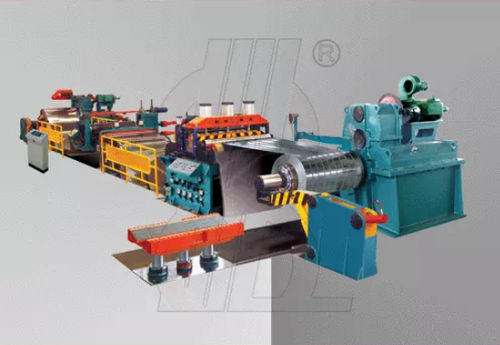

Metal strip slitting line HL-ZJ1250-120

CNCcoil-fed

The equipment is used for slit the silicon steel, tinplate, steel, aluminum and etc. It used Siemens PLC, Yuken hydraulic components and NSK bearings in the key position. For accurately slitting silicon-steel, tinplate, strip steel and aluminum strip. German Siemens PLC control, Japanese YUKEN brand hydraulic components. 1）Slitting thickness: 0.2-0.5mm 2）Max slitting width: 1250mm 3）Max uncoiling weight: 10T 4）Uncoiling O.D.: ≤1600mm 5）Uncoiling I.D.: 480-520mm 6）Slitter mandrel diameter: 180mm 7）Slitting quantity: 30 strips (thickness 0.50mm) 8）Slitting width: ≥30mm 9）Recoiling weight: ≤10T 10）Recoiling I.D: 508mm 11）Slitting parallel tolerance: 0.05mm/m 12）Burr: ≤3% of the strip thickness, but not less than 0.02mm. 13）Slitting width tolerance:0.05mm 14）Speed regulation method:DC 15）Speed：10-120m/min 16）Total consumption：150Kw 17）Land occupation：20×8m 18）Other performance：All hydraulic driven, Proper circle recoiling, Pneumatic-expansion type strip tightener, Strip end crop, Side collector. 19）Unique design：Touch screen operation, Siemens PLC control, Whole ling automatic running, On-line adjust slitting width, Adjust knife without removing shaft, On-line grinding.
