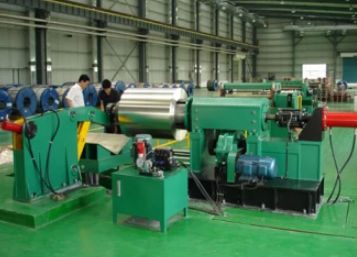

Die cutting line HL1200BS3

for metalsheetstacking

HL1200BS3 digital-controlled scroll cutting device For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost. The electric control components use whole set of Mitsubishi control system. Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material Straight die / Scroll die Feed-to-stop 1) Sheet width range500-1200mm 2) Sheet thickness range0.125-0.525mm 3) Sheet length range500-1200mm 4) Max coil weight12T 5) Nominal coil I.D.420mm 6) Mandrel expansion range385-445mm 7) Coil O.D.915-1700mm 8) Max line speed60m/min 9) Max cutting strokes70 SPM 10) Max bundle weight2100kg 11) Max bundle height460mm(Including stander) 12) Length tolerance range≤±0.15mm 13) Diagonal tolerance range≤±0.18/1000mm 14) Power consumptionabout 37kw 15) Air consumptionabout 1m3/min
