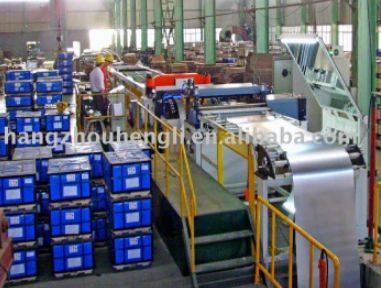

Die cutting line HL1200BS4

for aluminumsheetcoil

HL1200BS4 digital-controlled scroll cutting device(coil cutting line) For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost. The electric control components use whole set of Mitsubishi control system. Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material Straight die / Scroll die Feed-to-stop 1). Sheet width range: 500-1200mm 2). Sheet thickness range: 0.125-0.525mm 3). Sheet length range: 500-1200mm 4). Max coil weight: 12 T 5). Nominal coil I.D.: 420mm 6). Mandrel expansion range: 385-445mm 7). Coil O.D.: 915-1700mm 8). Max line speed: 80m/min 9). Max cutting strokes: 100 SPM 10). Max bundle weight: 2100kg 11). Max bundle height: 460mm (Including stander) 12). Length tolerance range: ≤±0.15mm 13). Diagonal tolerance range: ≤±0.18/1000mm 14). Power consumption: about 76kw 15). Air consumption: about 1m3/min
