Metal cut-to-length cutting line KJCC

coilsheetstacking

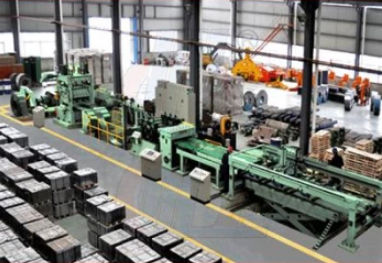

Cut To Length Lines can do uncoiling, leveling, measuring, cross-cutting to length and stacking work. It mainly includes uncoiler, leveler, measuring encoder, shearer, conveyor, stacker, hydraulic system, pneumatic system and electrical system, etc., the line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating. Cut to length line is controlled byPLC system. It has PLC controlled the length measurement. The information of length, shearing numbers and speed can be input to the PLC systems. When the need shearing number is reached the line can stop automatically. The line speed can be adjusted, It has a encoder with high precision, and whole line can work automatically and operate easily, smooth sheet can be made. 1. Coil car 2. Double Cone Decoiler 3. Snubber Arm. 4. entry support peeler table 5. straighener 6. roller table 7. Side Guide Roller 8. The leveler 9. end plate run out pinch roll 10. Hydraulic Shearing Machine 11. stacking table 12. Hydraulic Systems 13. Pneumatic Systems 14. Electrical System PLC Control
