Absolute rotary encoder ACURO AC61
optical16-bit8-bit

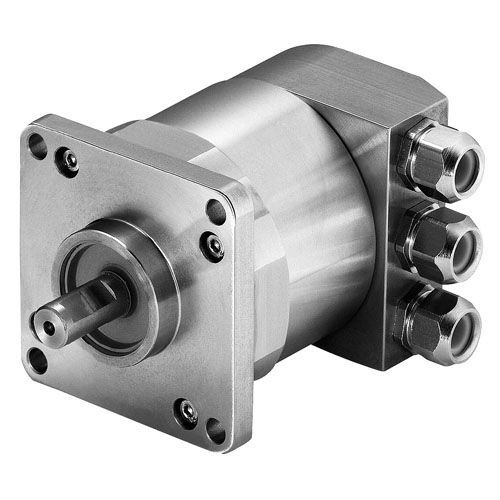

Absolute rotary encoder - ACURO AC61  - HENGSTLER - optical / 16-bit / 8-bit
Absolute rotary encoder - ACURO AC61  - HENGSTLER - optical / 16-bit / 8-bit
Absolute rotary encoder - ACURO AC61  - HENGSTLER - optical / 16-bit / 8-bit - image - 2
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
optical
Absolute encoder resolution
12-bit, 16-bit, 14-bit, 10-bit, 8-bit, 13-bit, 15-bit
Construction
solid-shaft, single-turn, multi-turn
Output signal
parallel, SSI, CANopen, ProfiNet, PROFIBUS, DeviceNet
Material
stainless steel
Protection level
robust, UL, IP67
Applications
marine
Other characteristics
compact, programmable
Housing diameter

61.5 mm
(2.42 in)

Rotational speed

6,000 rpm
(37,699 rad.min-1)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Description

High resistance to corrosion Various bus connections: SSI, BiSS, Profinet, Profibus, CANopen, CANlayer2, DeviceNet and Interbus Fields of application: Packaging machines for foods Ship equipment (e.g. derick cranes, winches, cable-laying equipment) Offshore applications The AC61 series combines a series of absolute rotary encoders with optical scanning that have been specially designed for use in extreme ambient conditions. The size 58 mm encoders have a stainless steel housing and are particularly suited to oil and gas applications, marine fittings, the food industry, packaging industry and offshore applications. As single-turn and multi-turn versions, these encoders achieve a resolution of up to 29 bits (17 bits single-turn, 12 bits multi-turn). Connection options are parallel output, Profinet, Profibus, CANopen, CANlayer2, DeviceNet and Interbus.
