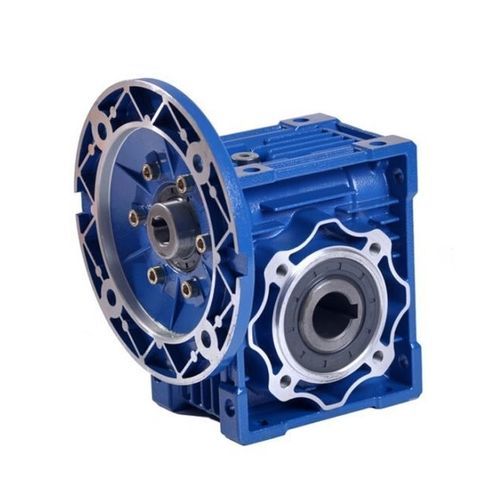

Worm gear reducer GMRV
right anglehollow-shaftsolid-shaft

Worm gear reducer - GMRV - Hengsu Holdings Co,.Ltd. - right angle / hollow-shaft / solid-shaft
Worm gear reducer - GMRV - Hengsu Holdings Co,.Ltd. - right angle / hollow-shaft / solid-shaft
Worm gear reducer - GMRV - Hengsu Holdings Co,.Ltd. - right angle / hollow-shaft / solid-shaft - image - 2
Add to favorites
Compare this product


Characteristics

Type
worm
Shaft orientation
right angle
Shaft configuration
hollow-shaft, solid-shaft
Torque
200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm
Configuration
flange
Applications
for food industry machinery, wheel, for the chemical industry, for pharmaceutical products, for machinery
Other characteristics
aluminum
Power

Max.: 15,000 W
(20.39 hp)

Min.: 90 W
(0.12 hp)

Description

GMRV worm reducer Product features of GMRV series worm reducer 1. GMRV series worm gearbox adopt aluminium alloy or cast iron square housing, small size and elegant appearance. 2. It is flexible and convenient to install, steady running, efficient radiator, low noise, high carrying ability. 3.... Product features of GMRV series worm reducer 1. GMRV series worm gearbox adopt aluminium alloy or cast iron square housing, small size and elegant appearance. 2. It is flexible and convenient to install, steady running, efficient radiator, low noise, high carrying ability. 3. The products have been widely used for machinery equipment, such as chemical, plating, ceramic, pharmaceutical, leather, foods, beverage, etc. Input form: flange input, motor input, shaft input; Output form: hollow shaft, solid shaft or output flange; Materials of speed reducer body: Aluminum alloy or cast iron; Materials of worm-wheel: ZCuSn10Pb1; Noise of speed reducer: ≤50dB;
