Gas blower XGB series
ringsingle-stageconveying

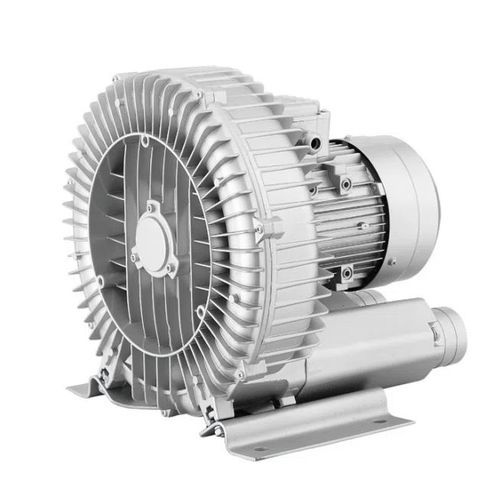

Gas blower - XGB series - Hengsu Holdings Co,.Ltd. - ring / single-stage / conveying
Gas blower - XGB series - Hengsu Holdings Co,.Ltd. - ring / single-stage / conveying
Add to favorites
Compare this product


Characteristics

Type
gas
Technology
ring
Number of stages
single-stage
Applications
conveying, regenerative, suction, precision
Voltage / frequency
220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz, 380 v / 60 Hz
Other characteristics
high-pressure, drive, vortex
Flow

Min.: 30 m³/h
(1,059.44 ft³/h)

Max.: 1,000 m³/h
(35,314.667 ft³/h)

Operating pressure

Min.: 6,000 Pa
(0.87 psi)

Max.: 65,000 Pa
(9.427 psi)

Nominal power

Min.: 0.12 kW
(0.163 hp)

Max.: 18.5 kW
(25.153 hp)

Description

The instruction for air blowers: We’ve been focused on this kind of blowers for more than 15 years. We only produce side channel blowers, it's also called ring blower, regenerative blower, air blower, vacuum pump etc.. We also supply belt drive blowers and all the parts for this kind of... We’ve been focused on this kind of blowers for more than 15 years. We only produce side channel blowers, it's also called ring blower, regenerative blower, air blower, vacuum pump etc.. We also supply belt drive blowers and all the parts for this kind of blower. The range of the power for our blowers is from 0.12kw to 30kw. Each production procedure is operated in our own workshop, tooling making, die casting, stamping, high precision machining, assembling and automatic spraying, so we could control the quality, cost and delivery date better. We have full range fittings for matched the blowers to help you have a much better experience in using our blowers, the fittings we have are silencer, filter, filter barrels, pressure relief valve (metal and plastic) and some connections, here showing some photos:
