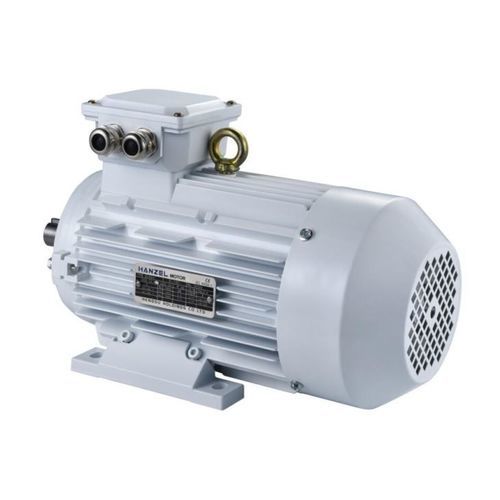

Three-phase motor IE3 seriesasynchronousIP55squirrel cage
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- asynchronous
- Protection class
- IP55
- Configuration
- squirrel cage, stainless steel, aluminum frame, small, TEFC
- Efficiency classes
- IE3
- Number of poles
- 2-pole
- Cooling mechanism
- air-cooled
- Other characteristics
- high-efficiency, high-torque, low-noise, low-vibration, energy-saving
- Power
Min.: 750 W
(1.02 hp)Max.: 315,000 W
(428.281 hp)- Intensity
Min.: 1.35 A
Max.: 549 A
- Torque
Min.: 1.6 Nm
(1.1801 ft.lb)Max.: 8.3 Nm
(6.1218 ft.lb)- Rotational speed
Min.: 2,870 rpm
(18,032.74 rad.min-1)Max.: 3,580 rpm
(22,493.8 rad.min-1)
Description
2 Poles IE3 Electric Motor high efficiency energy saving high quality electric motors have the advantage of high efficiency, long working life, energy saving, high starting torque, low noise, small vibration, big breakaway torque, reliable...
Three-phase, multivoltage, IP55, TEFC
Frames: 80M1 up to 355L
Class “F” insulation (ΔT = 80K)
Continuous duty: S1
Design N
Squirrel cage rotor/Aluminium die cast
Thermal Protection (Thermistors) on windings fortripping at 155 °C for frames 160L to 200L
Stainless steel nameplate
Dimensions according to IEC 60072
Performance characteristics according to IEC 60034-30
Color: According to client's requirements
