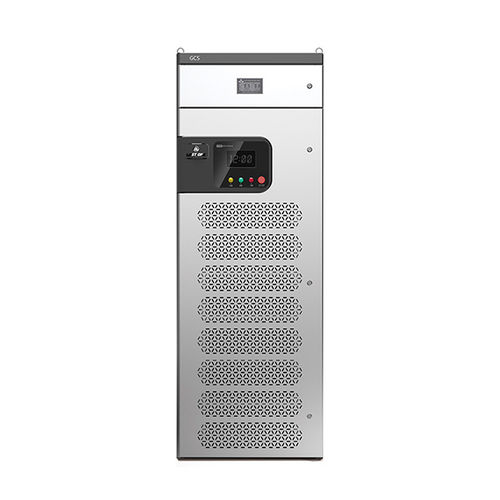

Active compensator HYAPF

PFCharmonicautomatic

Complete set of HYAPF active power filter (abbreviated as active filter) 1 Brief introduction and schematic diagram of filtering effect HYAPF active filter can detect the loaded current in a real time through the external current transformer, extracting the harmonic components of the loaded current calculated by the internal DSP, and then deliver to the internal IGBT through PWM signal. The control inverter will produce current with the same size and opposite direction as the loaded harmonic and inject it into the power grid for compensating harmonic current, thus to filter the functions. Harmonic compensation: APF can filter two to fifty times of harmonic at the same time. Reactive power compensation: Capacitive and inductive (from -1 to 1) step-less compensation Three-phase unbalance compensation: Three-phase active power unbalance compensation, Three-phase reactive power unbalance compensation and phase compensation. The switching times of semiconductors can be over 10000 times per second, with quick response and instant management.
