Flexible borescope

for fiber optics

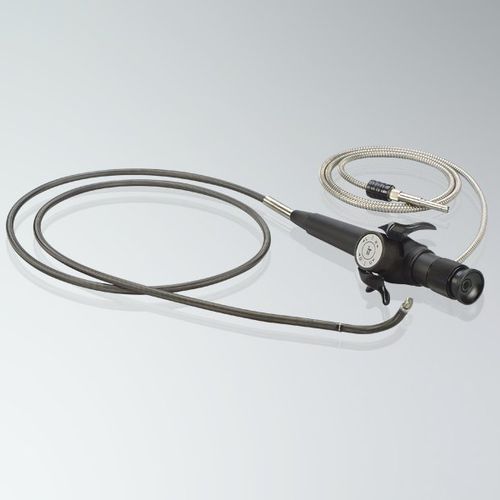

If it is not possible to reach the inspection area using a rigid borescope, we recommend to use our flexible optical- fibre borescope. The inspection operation can be carried out with one hand. Moreover, the borescope tip can be bent 2way or 4way depending on the design type by means of a remote-control function from the main unit. This function allows to control both the insertion direction and the viewing direction. The image captured by the objective lens is distributed to many thousands of optical fibres, routed to the eyepiece where it is put together again to form a high-quality image. Technical specifications Robust sheath made of stainless steel or polyurethane Utilisation of the latest optical fibre technology Very-high resolution Easy connection of video and digital cameras 90° adapters, optional Design types Diameter: From 2.4 mm to 8 mm Effective length: 400 – 2,750 mm Viewing directions: 0°, 90° (with adapter) Field of view: 45° or 60° Bending: 2fold and 4fold Accessories: On request!
