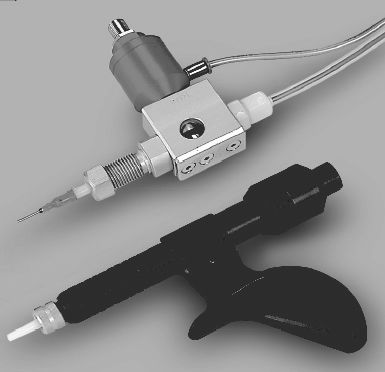

Pinch dispensing valve Loctite 97121 Pinch Valve Applicator

Loctite 97121 Dispensing Valve - Pinch Valve Applicator The pinch valve is a normally closed single acting valve with spring assisted closure for fail safe operation. The pinch valve can be conveniently mounted on the reservoir lid or can operate as a stand alone valve. Dispense is controlled by time, pressure and stroke of the actuator assembly. Features: ◾Set-up options: Dispense needle is directly fitted to the valve tip. Feedtube connected to tank reservoir using tank fitting. ◾Dispense valve is screwed onto tank lid: Dispense needle is fitted to lightweight, ergonomically designed pencil applicator. Both are connected by a double-walled product feedline. ◾Normally closed single acting valve ◾Suited to all adhesive types ◾Two feed tube diameters and accessories supplied ◾Viscosity range 0-500 mPas, use 1.7mm ID tubing ◾Viscosity range 500-5000 mPas, use 2.4mm ID tubing
