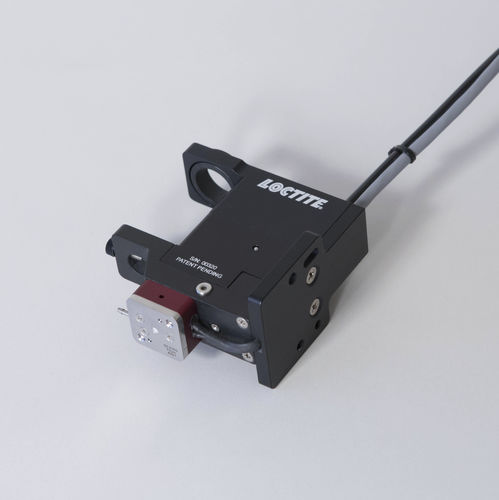

Jet valve Loctite EQ VA30 Jet Valve

PRODUCT DESCRIPTION The VA30 Jet Valve is designed for fluid dispensing in the electronics, industrial, semiconductor and life science markets. It is unlike any other jet on the market because only our jet dispensing product employs a unique diaphragm technology. Hard to dispense fluids can be dispensed reliably in volumes as small as 10 nanoliters. The VA30 Jet Valve is extremely fast and can dispense on-the-fly. It can apply multiple drops-per-location at a speed up to 300 drops/sec. The drops can be dispensed into areas with clearance as small as 300μm without contamination of the surface. The VA30 Jet Valve is suited for dispensing a wide range of fluids for a variety of applications. To ensure best product compatibility the fluid path is made from ceramic and stainless steel and the diaphragm is made of a highly fluorinated elastomeric material. PRODUCT FEATURES  Up to 300 drops/sec  Drops as small as 0.01 μl  No fluid seals to clean or replace  Valve is field repairable, not necessary to return to factory for rebuild or repair  Integral heater with minimal fluid heated  Tungsten carbide or ceramic internal components for long life
