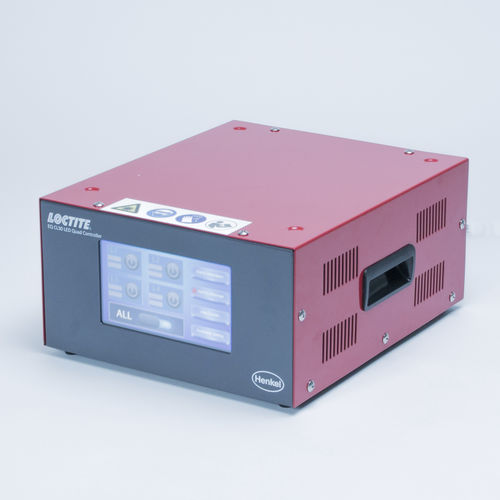

Power controller EQ CL30 LED Flood Quad Controller

Product Description This LOCTITE® LED Flood Quad Controller supplies power and control for up to four (4) LOCTITE® LED Flood Arrays. Choose from (365 nm wavelength, item #2139182; 380 nm wavelength, item #2139181, or 405 nm wavelength, item #2139180.) The LED Flood Array wavelength is selected according to the curing requirements of the adhesive. NOTE: Each of the Flood Arrays are sold separately. This Controller has three different control modes: Timer Mode: adjustable from 0 to 999 seconds. When timer is set to zero, the LED will be in a continue mode which means the LED head turns on with one click of the foot switch or input signal, and turn off with one click again. Level Mode: the operator can setup intensity percentage for each channel. Advance Mode: Operator needs to define Step, Intensity, and Time. For a given irradiance, the exposure time required to fully cure the adhesive depends primarily on the properties of the adhesive and the optical properties of the substrate that the light is transmitted through. Product Features ⚫Capacity for up to four UV LED heads ⚫Intensity adjustment for each channel ⚫Works with Loctite CL30 LED Flood heads ⚫Touch screen HMI ⚫3 running modes:Timer, Level and Advance ⚫3 languages : English, German and Chinese ⚫Environmentally friendly Product Benefits ⚫Touch screen operation panel, easy to use ⚫Friendly user interface ⚫Increased productivity, maintenance free ⚫Lower cost of ownership ⚫Less energy required, lower operating cost ⚫Easy integration
