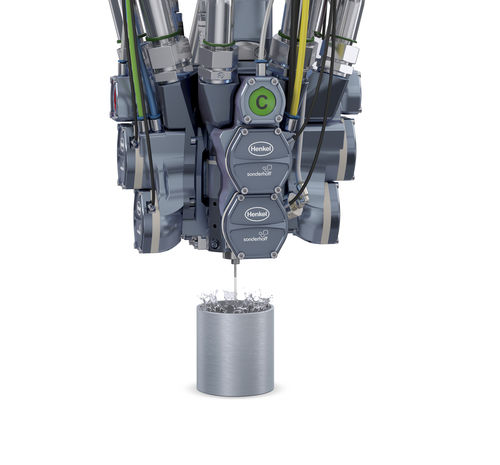

Polyurethane mixing head MK 800 series

dynamiclow-pressurefor 2-component resins

The mixing head MK 800 series for processing two or three components has three main functions. Firstly, the two components are precisely dosed into the mixing chamber in the specified mixing ratio via the built-in valve technology. Secondly, the components are homogeneously mixed within the mixing chamber by the servo-controlled agitator. The material is then applied precisely via the dosing nozzle. The MK 800 series dynamic mixing head enables dosing from 0.2 to 100 g/s, with infinitely variable mixing ratios from 100 : 1 to 1 : 100, with a dosing accuracy of +/1 %. If the material reacts quickly, the mixing chamber can also be rinsed regularly - in the MK 800 series with the patented high-pressure water rinsing system! Information on the MK 800 series: * High-pressure water rinsing device for the ecologically friendly cleaning of the mixing system * Servo-pneumatically and hydro-mechanically regulated precision recirculation valves for the complete conditioning of the used materials * Size-optimised, functional design to provide maximum operating freedom * Electronically regulated stirrer speed; a special stirrer design allows materials to be handled smoothly * High-pressure needle bar valves for injection of rinsing water * Blast-air needle bar valves for the drying of the mixing system * Anti-drip, maintenance-free “Stop-Drop DVS-3” nozzle-shutoff device with axially adjustable drive shaft * Speed-controlled stirrer drive motor * Power transmitted directly or via flexible drive shaft
