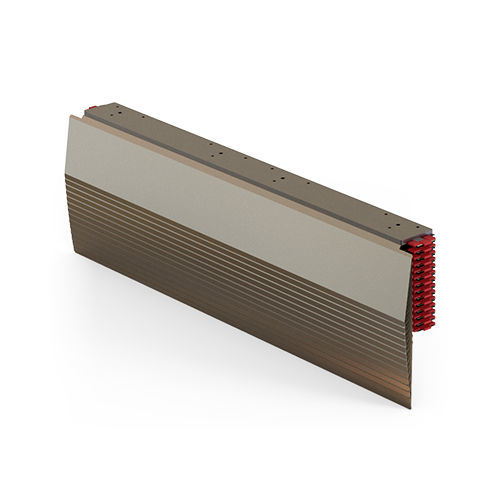

Modular protective bellows

flatmetalcoated fabric

Lightweight, interlocking steel fins connect modularly without requiring a folded bellow for support. Modular design allows for extremely high compression, fast travel, and easy maintenance. These bellows are made from metal plates, so they offer better protection against chips, weld splatter, and hot swarf than coated fabric bellows. MAXIMUM COMPRESSION Expand your entire machine stroke with micromodular lamella bellows. Newly designed plates interlock with each other, enabling a compression of 2.4mm per lamella. ANTI-SCRATCH COATING A unique coating is added to each fin to prevent scratching, which significantly increases the life of the cover (up to 70%). Additionaly, the coating increases the seal against coolant and chips (available for lamellas up to 1000 mm wide) EASY MAINTENANCE / PART REPLACEMENT Each lamella can be replaced individually, meaning the entire system doesn’t have to be removed or disassembled if damage is done to the cover. OPTIONAL FABRIC COVER For 100% seal against coolants, a fabric cover can be added. This option has all the compression benefits as the standard modular lamella bellow but with better sealing. MicroFIN Modular Bellows By Hennig
