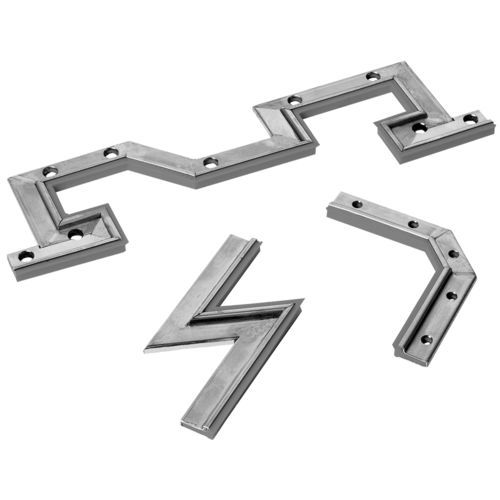

Slide scraper AB series

polyurethanemolded

• For use in metal-cutting machines with large volumes of chips and coolants • Standard lengths can be profiled by the customer for service and repairs • Factory-profiled forms ensure an excellent wiping performance • Stainless steel support profiles ensure high mechanical stabi lity under permanent load • With elastic, highly abrasion-proof polyurethane wiper lips. Permanent temperature resistance 90°C • Partly resistant to acids, leaches, and gasoline • Easy to replace • The miter joints of the wiper casing are welded • 90° wiper lip with a 45° chamfer molded in one piece • Protected against hot chips and mechanical damage • Standard lengths available in stock (mm): AB I, AB III - 530/1000/2000, AB V - 1000 • Can be profiled to nearly any designs according to drawing or sketch • Mounting holes included upon request
