Scraper conveyor CDF

with chip disc filtration

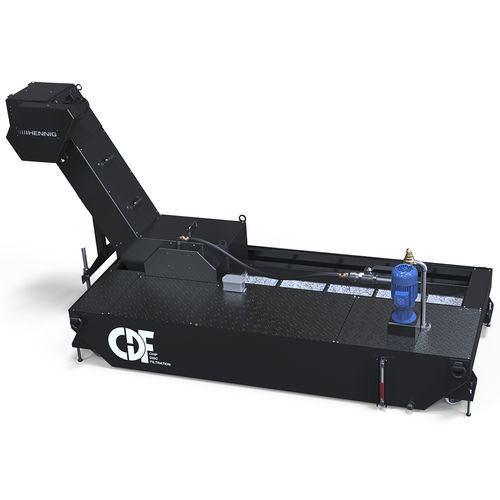

Coolant Filtration. Simplified. The patented Chip Disc Filtration (CDF) technology achieves high levels of filtration without two separate belts. Our patented disc design provides a direct coolant flow path into the coolant reservoir and can filter a wide variety of materials, both in water and oil based coolant, down to 25 microns nominal. This affordable, versatile approach to chip removal is Hennig designed and patent protected. It is the most simple approach to coolantfiltration in the market today. The Hennig CDF system is simple by design, and can be used with a scraper type belt or a hinge belt. Cast Iron Filtration. Made Easy. For the notoriously difficult cast iron applications, the addition of a solid rotating magnetic drum can be incorporated for efficient removal of floating chips, fines and sludge. Features • Main flood coolant pumps • High pressure pump 300-1000 psi (21-69 bar) • Backwash CDF pump • Disc access cover panels • Coolant tank • Control boxshown with HMI controls • Low inlet height • Additional filtration Options • Belt type can be used with scraper belt or hinge belt • Filter disc diameter 10" (254mm), 12" (305mm), 16" (406 mm) • Single or multiple discs depending on coolant flow rate • Solid rotating magnetic drum for collecting cast iron sludge/swarf • Cartridge or cyclonic filters for filtration down to 10 microns • Air knife for removing sticky chips from belt • Sludge pot for easy sludge/swarf disposal Applications • Any application requiring coolant filtration
