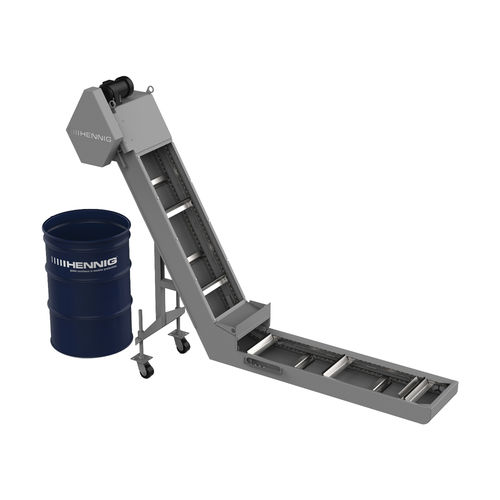

Scraper conveyor K

belthorizontalfor materials handling

Our scraper belt conveyor offers an ideal solution for efficiently managing fine chips and swarf. Featuring a reverse motion, the scraper belt collects and drags chips up the incline towards the discharge end. To meet specific application requirements, standard scraper paddles can be customized with brushes or wipers. These conveyors are especially well-suited for handling aluminum, brass, and cast iron materials. Features • Overload/jam protection • Paint textured blue, white, grey, black (standard) custom colors as required • Incline angle 60° / 45° (standard) custom angles as required • Low profile design Options • Standard angle or custom paddles • Brushes / wipers • Integrated coolant tank / coolant filtration • Solid drum magnet for floating chips when using coolant • Wearing plate with hard manganese steel (rails and curves / bottom frame) Applications • Aluminum / Brass / Steel / Cast Iron • Fines / swarf / small / broken chips • Light or heavy chip loads Limitations • Not ideal for bushy / stringy / mixed chips • Inlet height must be 120 mm or more
