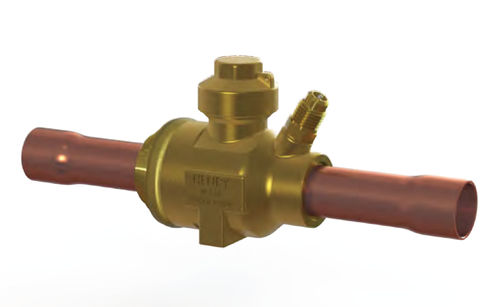

Ball valve 937xxx series manualisolationfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- isolation
- Media
- for wastewater, for gas
- Applications
- for refrigeration, for air conditioning
- Temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Features
Bi-directional flow
Mounting pad for easy installation
Extended copper tails
Indicator on stem shows valve position – open or closed
Fully opened or closed with a quarter turn of the valve stem
Positive stem stop ensures precise positioning in the open or closed position
Blow-out proof stem design
Triple stem seal, plus cap seal and solid cap for integrity
Ball cavity vented to prevent Pressure lock
Schrader valve options: 1/4” or 5/16” schrader valves available
Integral schrader access fitting on brass body
Full flow port design on valves 3/8” to 3-1/8”
Body is hermetically sealed
Hexagonal seal cap with eyelet and tether included
Helium tested to a maximum of 4.69 E-7 cm3/sec
