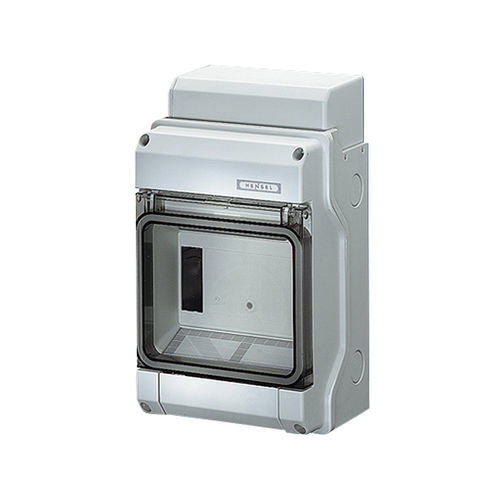

DIN rail electrical enclosure KV 9106

polystyrenecircuit breaker

With FIXCONNECT® N- und PE terminal For installation of units up to In = 63 A for mounting on DIN rail, top hat profile 35 mm With 1x 6 modules (18 mm) Rated voltage: Un = 400 V Protection class: II Rated current (of the terminal): In = 75 A N separable: No Type of cover: Cover Transparent cover: Yes Width in modules: 6 modules Number of rows: 1 Delivered accessories: Sealing plug, DIN rail(s), blanking strips, labelling strips, cable entry cover IP degree of protection: IP65 Cover cutouts: Break out During installation, the climatic effects on the installed equipment must be taken into account, for example high and low ambient temperatures and solar radiation. To reduce the formation of condensed water, see technical information: Formation of condensed water and retaliatory actions. Application area: Indoor installation Maximum ambient temperature 24 h: 35 °C Ambient temperature: -5 °C up to +40 °C Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C Material: Polystyrene Glow wire test according to IEC 60695-2-11: 750 °C UL 94: V-2 Temperature resistance: -25 °C up to +80 °C Halogen-free: Yes Silicone-free: Yes
