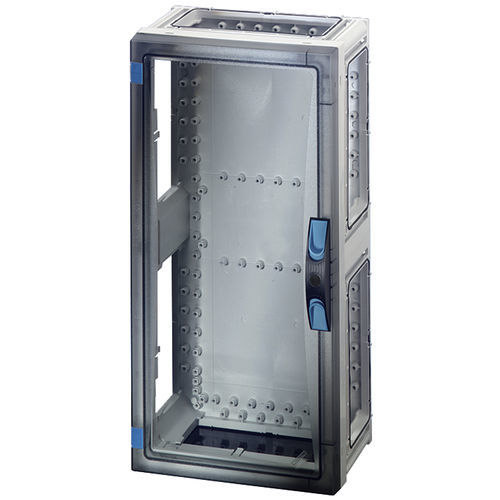

DIN rail electrical enclosure FP 0340polycarbonatepower distributionwith transparent cover
Add to favorites
Compare this product
Characteristics
- Configuration
- DIN rail
- Material
- polycarbonate
- Application
- power distribution
- Other characteristics
- with transparent cover
- Width
270 mm
(10.6 in)- Height
540 mm
(21.3 in)- Depth
186 mm
(7.32 in)
Description
Type of lid fastening:
Hand closure
Can be combined:
Yes
IP degree of protection:
In connection with accessories
Impact strength:
IK08
Sealable without accessories:
Yes
Application area:
Indoor installation
Maximum ambient temperature 24 h:
35 °C
Ambient temperature:
-5 °C up to +40 °C
Relative humidity:
≤ 50 % at 40 °C, ≤ 100 % at 25 °C
Material:
Polycarbonate
Glow wire test according to IEC 60695-2-11:
960 °C
UV-beständig nach DIN EN 61439-1:
Yes
Halogen-free:
Yes
Silicone-free:
Yes
Colour of the lid:
Transparent
Bottom part colour:
Grey
conforming to the standards:
DIN EN 61439-3
Catalogs
International catalog
400 Pages
