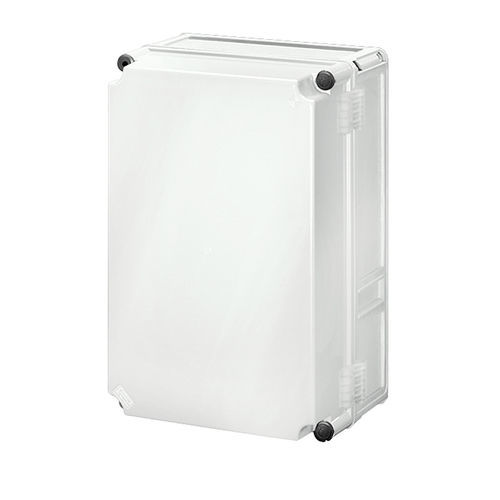

DIN rail enclosure MI 9311rectangularpolycarbonateindoor
Add to favorites
Compare this product
Characteristics
- Construction
- for DIN rail
- Configuration
- rectangular
- Material
- polycarbonate
- Application
- indoor, test
- Protection level
- halogen-free, IEC
- Other characteristics
- with hinged cover, protection
- Width
315 mm
(12.4 in)- Height
450 mm
(17.7 in)- Depth
214 mm
(8.43 in)
Description
With hinged lid, hinge, external
Protection cover according to DIN EN 61439 via lid
Type of lid fastening:
Tool operation
Can be combined:
Yes
IP degree of protection:
IP65
Impact strength:
IK08
Application area:
Indoor installation
Maximum ambient temperature 24 h:
35 °C
Ambient temperature:
-25 °C up to +70 °C
Material:
Polycarbonate
Under the influence of acid (10%), the hinges may become discoloured and brittle. The functionality is not limited.
Glow wire test according to IEC 60695-2-11:
960 °C
UV-beständig nach DIN EN 61439-1:
Yes
Halogen-free:
Yes
Silicone-free:
Yes
Net weight:
3.175 kg
Mounting height:
425 mm
Mounting width:
275 mm
Colour of the lid:
Grey
Bottom part colour:
Grey
conforming to the standards:
IEC 61439-2
