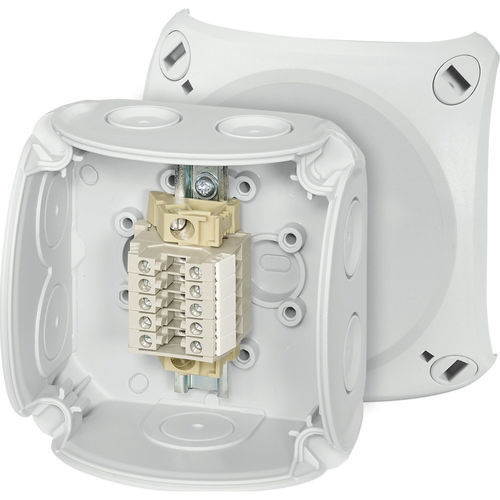

Wall-mounted junction box RK 0205 T

ULhalogen-freeIEC

With 5x terminal block WKM 2,5 / 15 Dimensions H x W x D: 93 x 93 x 62 mm With elastic membranes, which can be removed for cable entry via cable glands Rated insulation voltage: Ui = 500 V Rated current: In = 25 A Number of poles: 1 Number of clamping units per pole: 2 Connection type: Screw connection Ferrule required for flexible conductors: No Dismantling length: 9 mm Tightening torque of the terminal: 0.4 Nm Number of terminals: 5 Terminal labelling: Neutral Type of lid fastening: Quick locking: Opening and closing by quarter turn, locked position well visible (open - locked) Delivered accessories: External brackets, retaining strap, sealing plug IP degree of protection: IP66 Impact strength: IK07 Sealable without accessories: Yes Application area: Indoor installation Maximum ambient temperature 24 h: 35 °C Ambient temperature: -25 °C up to +40 °C Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C Material: Polypropylene Glow wire test according to IEC 60695-2-11: 750 °C UL 94: V-2 Temperature resistance: -25 °C up to +80 °C Halogen-free: Yes Silicone-free: Yes Colour: Grey, similar to RAL 7035 conforming to the standards: DIN EN 60670-1/-22, IEC 60670-1/-22
