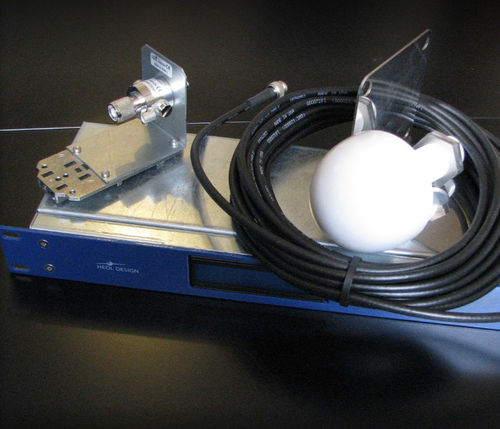

GPS time server T105

PPS

Time and frequency products of Heol Design are ideal for different applications. The T105 high accuracy features a primary clock, 1 satellite tracking and 15ns top/pps signal accuracy, photo logo pdf. It also has secured NTP server with very high accuracy, pps/TOP output achieves 15ns accuracy. The TRAIM algorithm provides guarantee for the security for only one GPS satellite tracked. You can enjoy fast start-up times and the one satellite will be sufficient to generate the precise Time-stamp in the static applications. A low drift OCXO or Rubidium oscillator is an incorporated option with Holdover capabilities in the absence of all satellites and GPS disciplined 10 MHz sine/square-wave output. A 2500V isolated event input allows you to time-stamp events from external systems, with very high accuracy (±100 nanoseconds, refer to UTC atomic clock). The TimeStamp information is reported through RS232, SNMP trap, E-mail or Broadcast frame. A second event input is available in option. In option, an battery powered internal RTC can provide timing information if no GPS satellites are available at power-up (antenna disconnected or hidden inside a building). Alarm relay is available, for driving your external systems in case of failure of the T105. A highly accurate pps (TOP signal) signal (±100ns) is available on SUB-D9 connector (pin 8 for Linux applications) or I/O connector (polarity, period, length, and delay compensation are configurable by user). It is also available with optional 1500V isolated static relay (in this case Alarm relay is not available). In option, IRIG-B003 output is available on the I/O connector.
