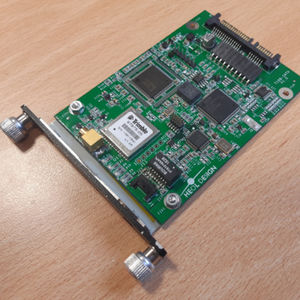

GPS time server T102

NMEAmodularDIN rail mount

The T102 module is a SNTP/NTP client/server, able to synchronize automated systems and industrial networks. It synchronizes its clients through Ethernet (IEC61850 compliant) or external GPS receiver (NMEA input). It can also be synchronized through IRIG-B, acting as a IRIG to NTP converter. The T102 can track external events with a very high accuracy - few µs (via specific input, isolated and protected). The T102 can generate programmable precise TOP signals, isolated at 2500V. As the T102 doesn’t include GPS antenna, you can integrate it at anyplace in your factory (it only needs to be connected to its server through Ethernet - can be T101 for example). Thanks to its Power on Ethernet feature, you can install it easily with only one cable for Data and Power. It is available in Rack or DIN rail mount. Alarms are displayed through SNMP traps (Ethernet interface) or through RS232. SNMP can also be used to configure T102 parameters (instead of http web server). IRIG-B003 and A003 output available on the I/O connector. A RS232 or RS422 serial port can be accessed for remote control and monitoring (with NMEA protocol output, and NMEA input for connection to external GPS receiver). The Power On Ethernet enables installation of the HEOL-T102 without the need for additional cables to provide power. In option, a battery powered internal RTC can provide timing information if no GPS satellites are available at power-up (antenna disconnected or hidden inside a building). The T102 is available in 2 different metal housings, either compact or 19’’ rack mounted form factor. This rack unit displays on a LCD module the status and timing information.
