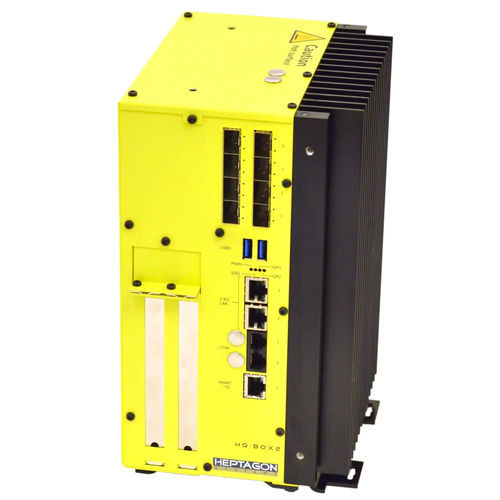

Rugged server HQ-Box2 2X

storagecommunicationsnetwork

Rugged Fanless server with 2x PCIe Add-On slots 8x SFP+ with up to 100Gb Ethernet throughput Rugged Fanless design for harsh environments. AST2600-based BMC with Display Port (DP) video On-board storage: M.2 NVMe + M.2 SATA + eMMC (soldered) PCIe Add-on Slots: 16-lane PCIe Gen4 8-lane PCIe Gen3 Optional fan(s) for cooling the add-on cards Storage - Motherboard : - NVMe SSD: M.2 M-KEY, PCIE3.0 x4, 2280/2260. SATA3 SSD: M.2 B-KEY, 2280. EMMC: Up to 256GB boot media, soldered. Display - Display port (DP), with BMC. Serial ports: 2x RS232. Motherboard Expansion Slots - 1x PCIe G4 x16, 1x PCIe G3 x8. M.2 M-KEY: 1x sockets, NVME, PCIEx4. M.2 B-KEY: 1x socket, SATA, USB3.0/2.0 + SIM. M.2 E-KEY: 1x socket, PCIEx1, USB2.0. Security - TPM 2.0, SLB9665. SECURE BOOT, SECURE FLASH. Power - 12VDC. Reverse polarity, Over/under Voltage protection. Optional 240W DC2DC supply: 9-36VDC in / 12VDC out with programmable ignition sense. Virtualization: KVM, ACRN, Vmware ESXi, Microsoft Hyper-V. RTOS: Wind River VxWorks. Led - Power, SSD, 2x GPIO. Mechanical - DIMENSIONS by model: HQ-Box2 Bare: 84x177x237mm (WxDxH). HQ-Box2 2X: 138x176x237mm (WxDxH). HQ-Box2 Storage-M: 92x176x237mm (WxDxH). HQ-Box2 Combo: 153x176x237mm (WxDxH) (this model is usually mounted horizontally). HQ-Box2 AI: 139x176x237mm (WxDxH). Environment - OPERATING TEMPERATURE - Standard 0°C .. 50°C Extended* -20°C .. 60°C Industrial* -40°C .. 72°C (optionally 75°C) * On selected configurations. STORAGE TEMPERATURE - -40°C to 85°C HUMIDITY - 95%@40°C (non-condensing). MTBF (hrs) - >100,000 Certification - EMC: CE, FCC ,AS/NZS, SAFETY: IEC 60950-1, AS/NZS.
