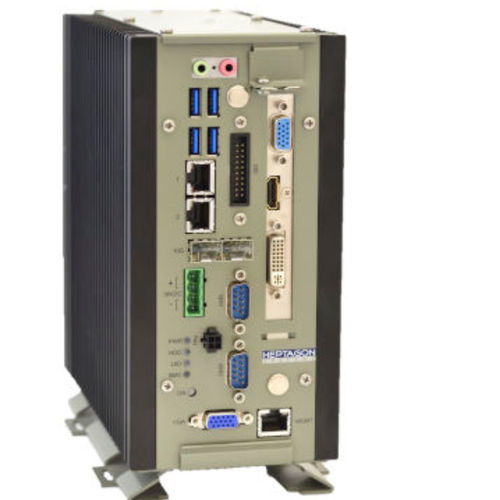

Storage server HQ-Box 1FcommunicationsnetworkEDGE
Add to favorites
Compare this product
Characteristics
- Type
- storage, network, communications, EDGE
- Mounting
- embedded, DIN rail, desktop, wall-mounted
- Processor
- Intel® Xeon
- Applications
- industrial, medical, for the aeronautical industry, for IoT applications
- Network
- 10GbE, 1GbE
- Memory
- DDR4 DRAM
- Operating system
- Linux, Windows server, Windows 10 IoT
- Other characteristics
- high-performance, gigabit Ethernet, USB 3.0, rugged, fanless, high-availability, IoT, vehicle-mount
- RAM capacity
Min.: 8 GB
Max.: 128 GB
Description
Additional 16-lane PCIe slot
PCIe 3.0, 16x, Full-Height Half-Length (FHHL) Add-on, up to 70W
Intel® Xeon® D-1500 CPU, 4-16 cores, 35-65W, in a compact 99x195x200mm enclosure
4x DDR4 2133/2400 MHz DIMM288 with ECC, up to 128GB
3x M.2 SSD (22110/2280): 2x NVMe and 1x SATA
2x 10G SFP+ and 2x GbE Ethernet
Aspeed AST2400 BMC (board management controller)
4x USB 3.0, TPM 2.0, VGA, 2x Serial ports
