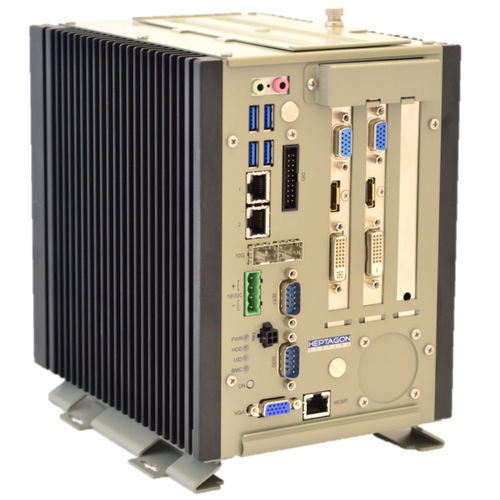

Storage server HQ-Box 3x

embeddedwall-mountedINFINEON

Trio of PCIe slots for maximum flexibility One PCIe 3.0 8-lane slot and a Dual PCIe 3.0 4-lane slot Full-height Add-on cards, up to 70W total 3x M.2 SSD: 2x NVMe + 1x SATA, 22110/2280 Aspeed AST2400 BMC (board management controller) Specifications Feature - Description - Connectivity - Ethernet - 2x 10G, SFP+ (Comming 2 x copper 10GBASE-T) 2x 1G Serial, multi-protocol - 2 x RS-232/485/422 Optional: 4 ports USIM socket - 2 (Attached to mPCIe and M.2 slots) Display - VGA - BMC controlled I/O - Audio - Stereo audio out and mono mic, using 3.5mm earphone socket. DIO - 8-ch Isolated DI + 8-ch isolated DO Watchdog timer - Programmable Management / BMC - Hardware: - Aspeed AST2400 based BMC module. 1 GB ETH management port (in addition to the above ETH). VGA display Software: - IPMI2.0, DCMI iKVM Virtual media (remote USB drive) Remote boot and BIOS update Security - TPM 2.0 using infineon SLB 9665 Power supply - 13.6 – 24VDC, 5% Environmental - Operating Temp. - Standard: 0°C to 50°C. Extended option: -20°C to 60°C (on selected configurations) Industrial option: -30°C to 72°C (on selected configurations) Storage Temp. - -40°C to 85°C Humidity - ~95% @ 40°C, not condensing Shock & Vibration - As defined by ETSI standard ETS 300 019-1-5, 5M2 profile. Higher profiles can be supplied (including Military Shock & vibration) Certifications - EMC - CE/FCC class B: EN 55032: 2012 + AC(13), Class B; EN 61000-3-2: 2014; EN 61000-3-3: 2013; EN 55024: 2010 Safety - EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 IEC 60950-1:2005 (Second Edition)+Am1:2009+Am2:2013 AS/NZS 60950.1: 2015 standards
