Butterfly valve AK/D
manualmounting flangelug type

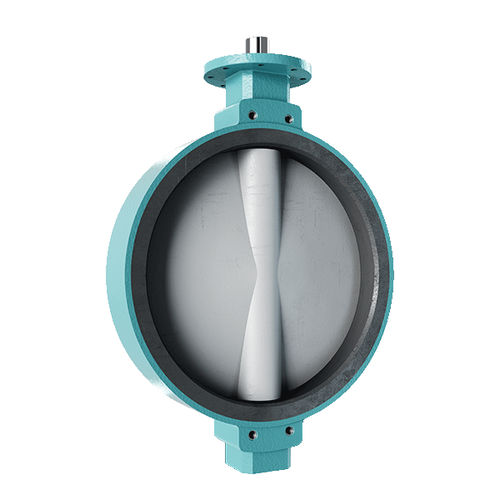

Butterfly valve - AK/D - Herberholz GmbH - manual / mounting flange / lug type
Butterfly valve - AK/D - Herberholz GmbH - manual / mounting flange / lug type
Butterfly valve - AK/D - Herberholz GmbH - manual / mounting flange / lug type - image - 2
Butterfly valve - AK/D - Herberholz GmbH - manual / mounting flange / lug type - image - 3
Butterfly valve - AK/D - Herberholz GmbH - manual / mounting flange / lug type - image - 4
Butterfly valve - AK/D - Herberholz GmbH - manual / mounting flange / lug type - image - 5
Butterfly valve - AK/D - Herberholz GmbH - manual / mounting flange / lug type - image - 6
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
manual
Body
mounting flange, lug type
Applications
wafer, for actuators
Other characteristics
ISO, DIN
DN

Min.: 25 mm
(0.984 in)

Max.: 1,000 mm
(39.37 in)

Pressure

20 bar
(290.1 psi)

Temperature

200 °C
(392 °F)

Description

One-piece body, tight-closing, centric discs With blow-out proof shaft Wafer type and lug type for flanges according to DIN EN 1092-1 and ASME B16.5 / B16.47 Exchangeable liner in various elastomer materials Insulatable according to EnEV Face-to-face length according to DIN EN 558-1-R20 Mounting flange for actuators according to DIN EN ISO 5211 Inspection according to DIN EN 12266

Catalogs

AK/D
AK/D
2 Pages
