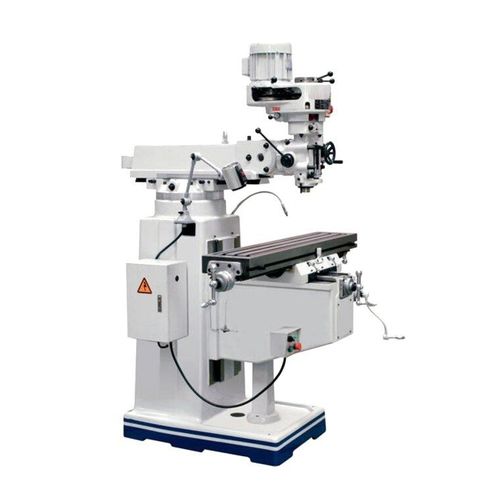

3-axis milling machine M3V(X6325A)vertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- X travel
810 mm, 900 mm
(31.89 in, 35.43 in)- Y travel
380 mm
(14.96 in)- Z travel
360 mm
(14.17 in)- Power
2 kW
(2.72 hp)
Description
Table size - 10"×50"/10"×54"
Longitudinal travel - 900/810 with power feed
Cross travel - 380
Certical travel - 360
T-slot No. and size - 3×16
Ram travel - 520
Distance from spindle nose to table surface - 50-410
Spindle travel - 127
Auto. quill feed - Three steps:0.04(0.0015")/0.08(0.003")/0.15(0.006")mm/revolution
Spindle motor - 2.25Kw/3HP
Head tilting - 45°
Head swivel - 90°
